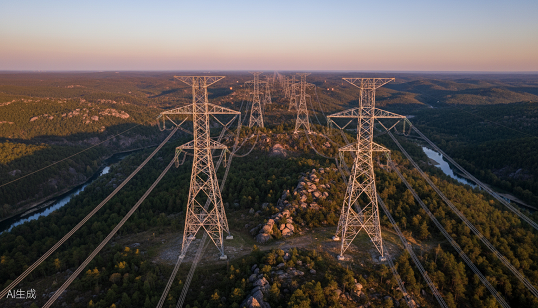

Power Transmission Solutions
Comprehensive range of overhead transmission conductors, electrical hardware fittings, and carbon fiber composite core products for 35kV to 1000kV power lines. Delivering reliability from China's leading manufacturers to global energy infrastructure projects.
Our Transmission Product Range
We supply a complete portfolio of power transmission products engineered for UHV, EHV, and HV overhead lines, backed by ISO-certified manufacturing and full technical documentation.
Overhead Conductors
ACSR, AAC, AAAC, ACSR/AW and carbon fiber composite core conductors for transmission and distribution lines. Available in cross-sections from 50mm2 to 1250mm2, rated from 35kV to 1000kV.
Transmission Line Hardware
Complete range of galvanized steel and aluminum alloy fittings including suspension clamps, strain clamps, connection fittings, and guy wire assemblies for all voltage levels up to 1100kV DC / 1000kV AC.
Carbon Fiber Composite Core
High-performance CFRP core rods and JRLX/T conductors featuring 2x ampacity, high-temperature resistance, and low sag. Available in diameters from 5mm to 20mm for modern grid upgrades.

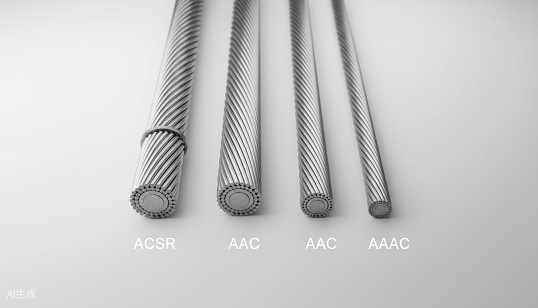

Overhead Conductors & Cables
Bare aluminum and aluminum alloy stranded conductors for overhead power transmission lines
ACSR / AAC / AAAC / ACSR/AW
We supply a full range of bare overhead conductors manufactured to IEC 61089, ASTM B232, BS EN 50182, and GB/T 1179 standards. Our conductors are widely used in 35kV to 500kV transmission lines across global markets.
All conductors feature high-purity aluminum wires with excellent electrical conductivity and corrosion resistance. ACSR variants use high-strength galvanized steel cores for superior mechanical loading capacity.
- Cross-Section Range: 50 mm2 - 1250 mm2
- Voltage Class: 35kV - 500kV (up to 1000kV for special orders)
- Standards: IEC 61089, ASTM B232, BS EN 50182, GB/T 1179
- Conductivity: 61% IACS (Aluminum), 80% IACS (Aluminum Alloy)
- Core Types: Galvanized Steel Core / Aluminum Alloy Core

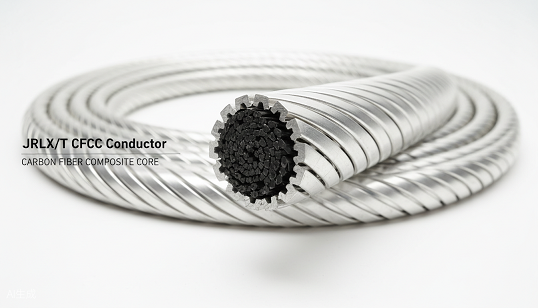

Carbon Fiber Composite Core Conductor (JRLX/T)
Our flagship JRLX/T carbon fiber composite core conductor delivers twice the ampacity of conventional ACSR with significantly reduced thermal sag. The trapezoidal aluminum wires surrounding the CFRP core maximize aluminum cross-section for optimal conductivity.
With operating temperatures up to 180C and tensile strength exceeding 2400 MPa, this conductor is ideal for grid reconductoring projects where existing tower structures limit upgrades. Successfully deployed on UHV projects including 1000kV AC lines.
- Model: JRLX/T Series (150/20 to 630/70)
- Core Material: Carbon Fiber Reinforced Polymer (CFRP)
- Tensile Strength: >2400 MPa
- Max Temp: 180C continuous
- Ampacity: 2x equivalent ACSR

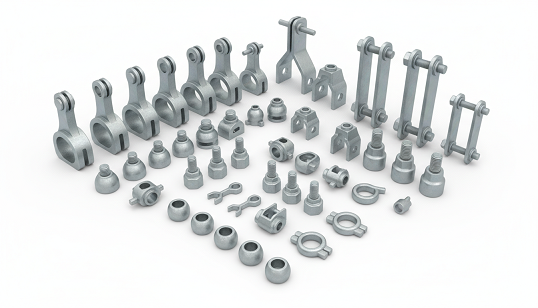

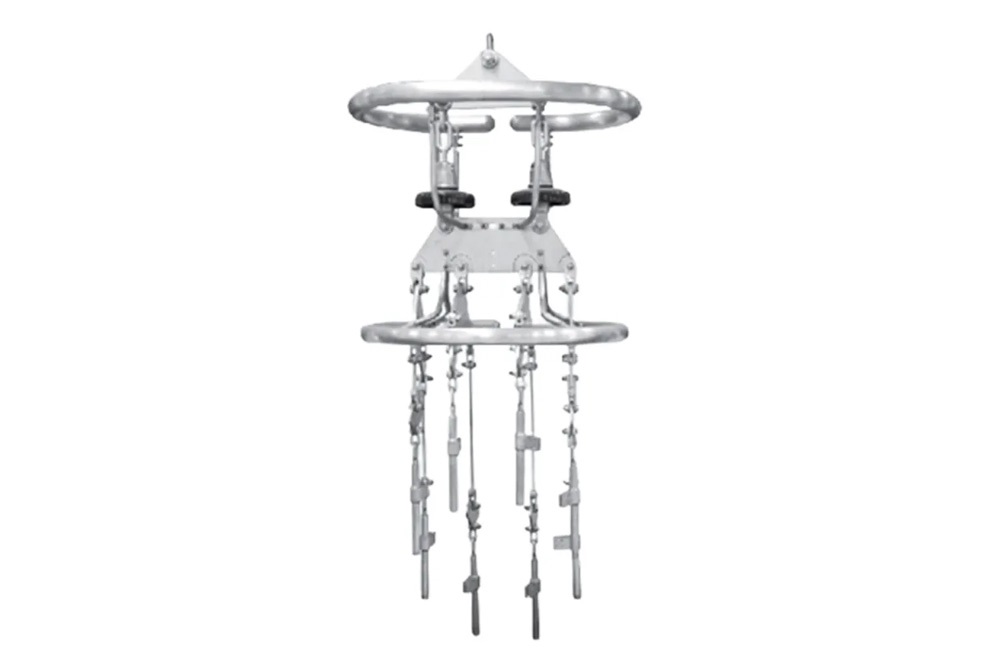

Transmission Line Hardware & Fittings
Hot-dip galvanized steel and aluminum alloy fittings for overhead line construction and maintenance

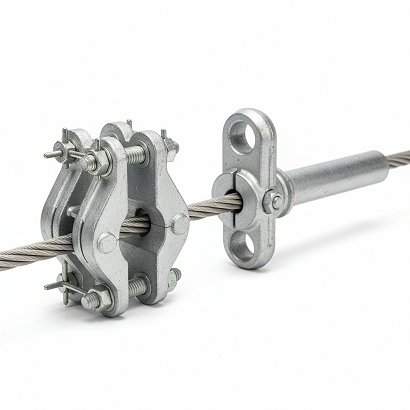

Suspension, Strain & Connection Hardware
Our transmission hardware is forged from high-strength steel or cast aluminum alloy with hot-dip galvanizing per ISO 1461, ensuring 30+ years of corrosion protection in harsh environments. All products are tested to IEC 61284 and GB/T 2314 standards.
We provide complete hardware assemblies for suspension and tension towers including UHV projects up to 1100kV DC and 1000kV AC. Products have been supplied to State Grid and China Southern Power Grid projects since 2008.
- Suspension Clamps: XGU, XGF, CGU series (Aluminum alloy / malleable iron)
- Strain Clamps: NY, NLD, NLL series (Bolted / compression / wedge type)

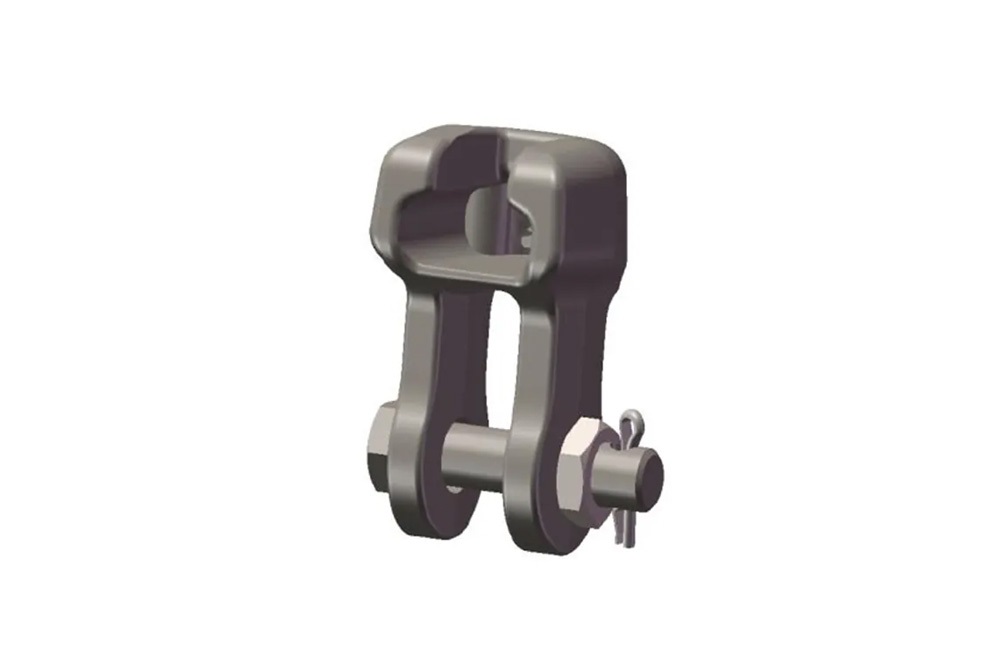

- Connection Fittings: Ball clevis, socket clevis, U-bolt, yoke plates
- Guy Hardware: Guy clamps, turnbuckles, thimbles, anchor rods
- Voltage Range: 10kV - 1100kV DC / 1000kV AC
- Finish: Hot-dip galvanized per ISO 1461
Full Product Catalog Available
Beyond standard suspension and strain hardware, we supply protection fittings, vibration dampers, spacers, and repair sleeves. Our engineering team provides hardware assembly drawings and load calculations for specific tower configurations.
- Protection Fittings: Armor rods, vibration dampers, corona rings, grading rings
- Jointing Fittings: Compression sleeves, repair sleeves, parallel groove clamps
- Insulator Fittings: Ball & socket couplings, clevis & tongue assemblies
- Brackets: Cross-arms, pole bands, transformer platforms

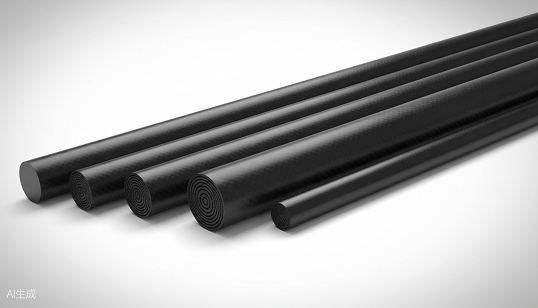

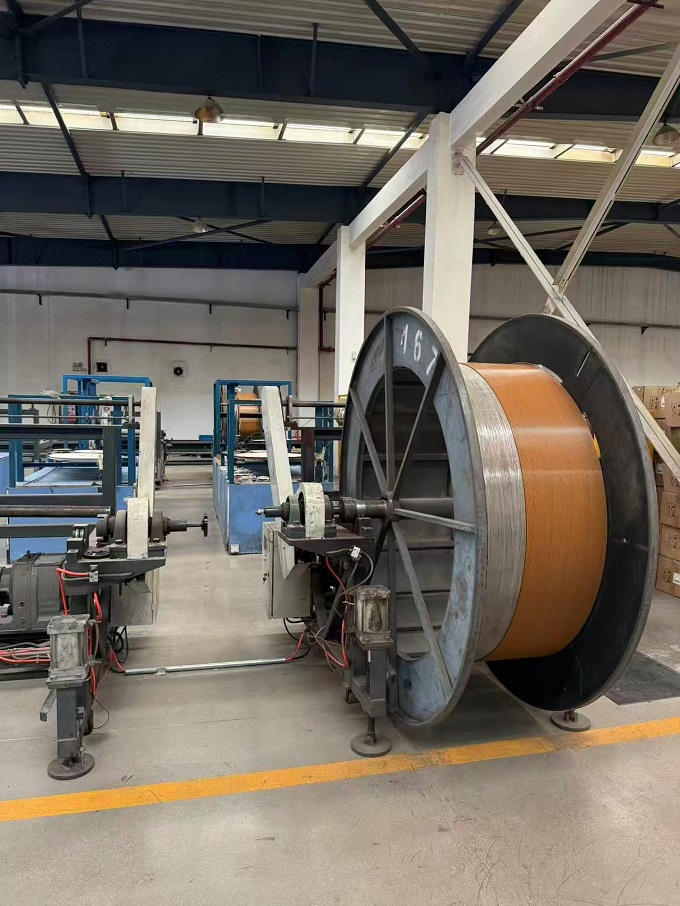

Carbon Fiber Composite Core Rods
Advanced CFRP core materials for next-generation high-temperature low-sag (HTLS) conductors

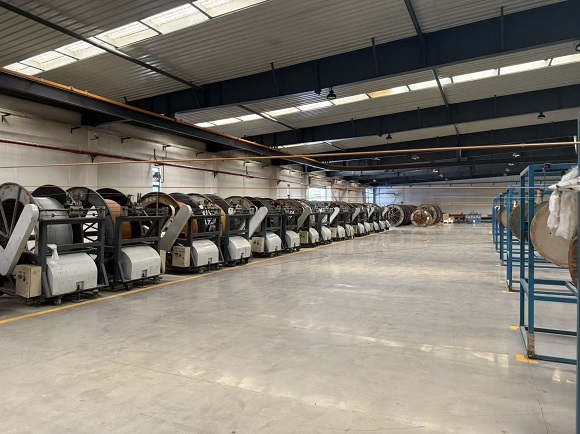

CFRP Core Rods for HTLS Conductors
Our carbon fiber composite core rods are manufactured by pultrusion using high-modulus carbon fibers and high-temperature resistant resin matrices. The resulting core offers exceptional tensile strength-to-weight ratio with near-zero thermal expansion.
With an annual production capacity of 50,000 km of core rods, we supply the world's leading conductor manufacturers. Our CFRP cores have been deployed on over 100 transmission lines globally, including the world's first 1000kV AC carbon fiber conductor project.
- Diameter Range: 5mm - 20mm (custom sizes available)
- Tensile Strength: 2400 MPa (standard) / 3000 MPa (high-strength)
- Elastic Modulus: >140 GPa
- Temp Resistance: 180C continuous / 200C short-term
- Expansion Coeff: 1.6 x 10^-6 /C (near-zero sag)
- Density: 1.6 g/cm3 (1/4 of steel)

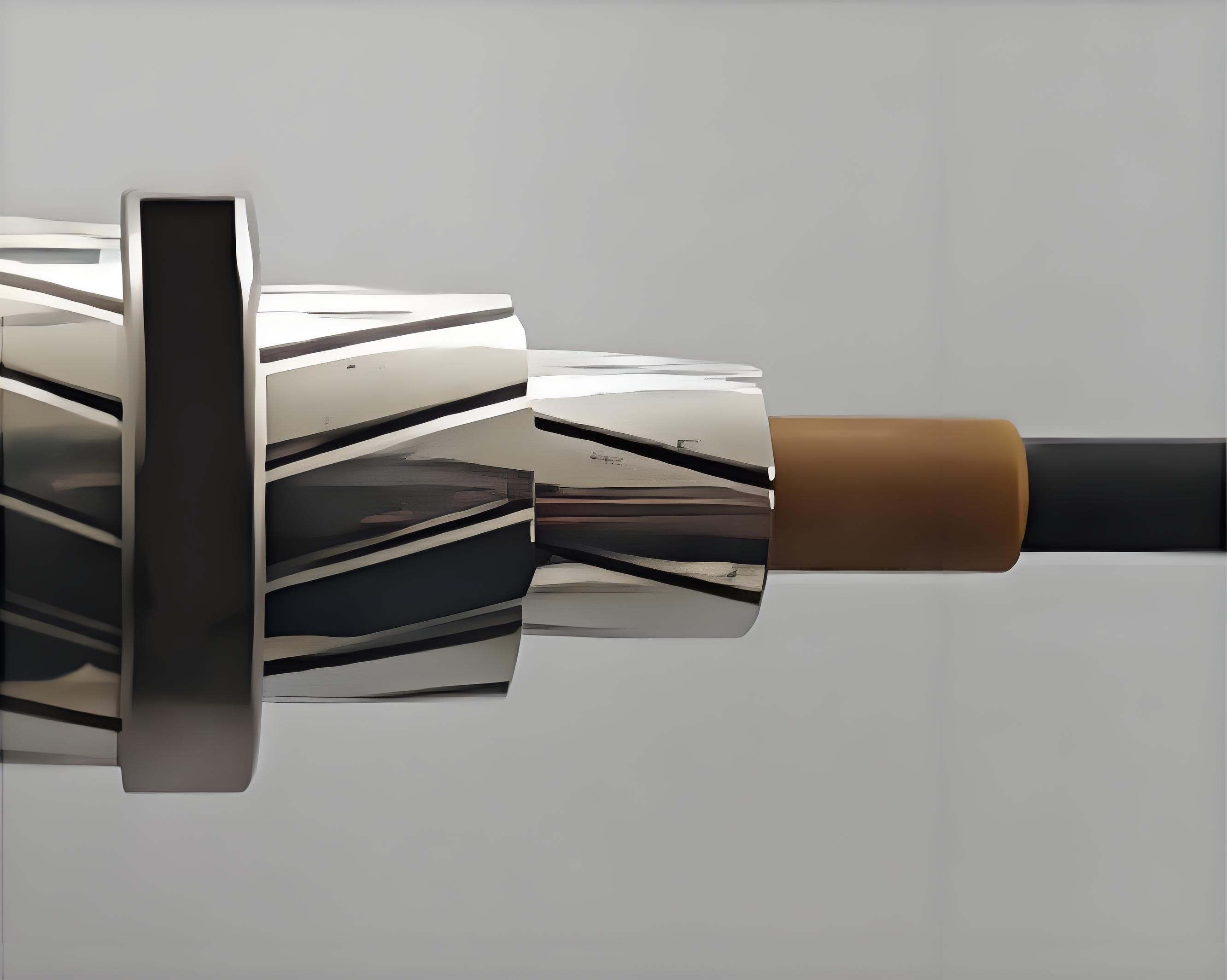

JRLX/T Carbon Fiber Composite Core Conductor
The JRLX/T conductor integrates our CFRP core with trapezoidal hard-drawn aluminum wires to create a high-performance conductor with double the current-carrying capacity of equivalent-sized ACSR. Its low weight and high strength allow longer spans and reduced tower counts.
This conductor is the optimal solution for congested transmission corridors where line upgrading is required without structural modification to existing towers. We provide full technical support including sag-tension calculations, installation training, and on-site supervision.
- Product Standard: GB/T 32502 / ASTM B1999
- Aluminum Wires: Trapezoidal T2 hard-drawn aluminum
- Core: Carbon fiber reinforced polymer (CFRP)
- Conductivity: 63% IACS
- Applications: Grid upgrades, new UHV lines, crossing spans
Why Choose Our Transmission Products
Quality assurance and technical excellence backed by industry-leading manufacturers
UHV Project Experience
Products deployed on 1000kV AC and 1100kV DC ultra-high-voltage projects across China and overseas markets
Certified Manufacturing
ISO 9001, ISO 14001, OHSAS 18001 certified production with full traceability and inspection reports
Type Test Reports
Complete type test certificates from Shanghai Cable Research Institute and national testing centers
Full Technical Support
Engineering team provides conductor selection, sag-tension calculations, and installation guidance
Flexible Supply
Wooden drum packaging, sea/land/air freight coordination, and LCL shipment options available
Warranty Coverage
Standard 12-month warranty with optional extended coverage and after-sales technical service
Applications
Our transmission products serve diverse infrastructure projects worldwide
UHV Transmission
1000kV AC / 1100kV DC
Grid Reconductoring
Capacity upgrades without tower changes
Long Span Crossings
Rivers, valleys, highways
Renewable Integration
Wind & solar farm connections
Industrial Power
Mining, oil & gas, steel plants
Rural Electrification
35kV & 66kV distribution
Request a Quote or Technical Consultation
Our engineering team is ready to assist with product selection, specifications, and project-specific solutions.
